Eriez Xtreme Metal Detectors

Identify metallic debris & contaminants, dangerous sharps, prevent equipment damage & provide optimum product purity

Eriez Xtreme Metal Detectors

The Xtreme Metal Detector is designed with the highest levels of sensitivity to detect small ferrous and non-ferrous metal contaminants down to 0.2mm spheres. Eriez can identify and remove harmful needles, scale, rust, nails, clips, bolts, nuts, staples, shards, stainless steel, aluminium and copper alloys in loose or free-fall processing systems and final packaging lines.

The Xtreme Metal Detector is ideal for the food, beverage, textile, pharmaceutical, plastics, rubber, chemical and many other industries.

Eriez has units of various heights and widths available for shipment and can offer aggressive pricing options, including ‘try and buys’ for local warehouse stock or can also organise quick shipments from our global manufacturing centres.

The Xtreme Metal Detector surpasses previous units and competitive models alike with enhanced features, improved sensitivity, intuitive operation and exceptional reliability.

Xtreme Benefits

  • Safeguard processing and packaging lines
  • Eliminate harmful metal intrusions
  • Maintain the highest quality product
  • Prevent damage to process equipment
  • Eliminate production downtime and costly maintenance
  • Develop automated and efficient quality control processes
  • Meet quality requirements and prevent product recall
  • Protect your brand and preserve your reputation

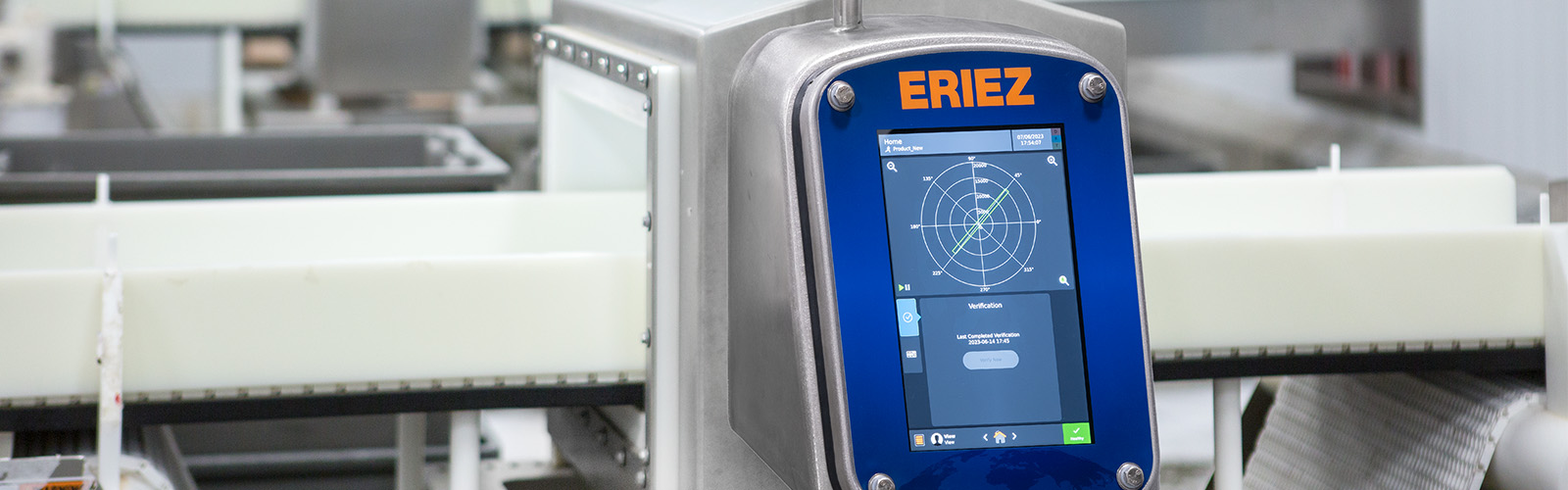

Set Up and Operation

The Xtreme Metal Detector ships with factory pre-set settings for your products (based on actual testing and provided application data).

  • Huge 178mm easy-to-use touchscreen interface
  • Multiple preprogrammed languages
  • Easy setup and reporting
  • Remote access
  • Multiple communication ports – USB and Ethernet
  • Standard high-pressure wash down resistant design
  • IP66 rating
  • Adding new products or changing parameters is simple

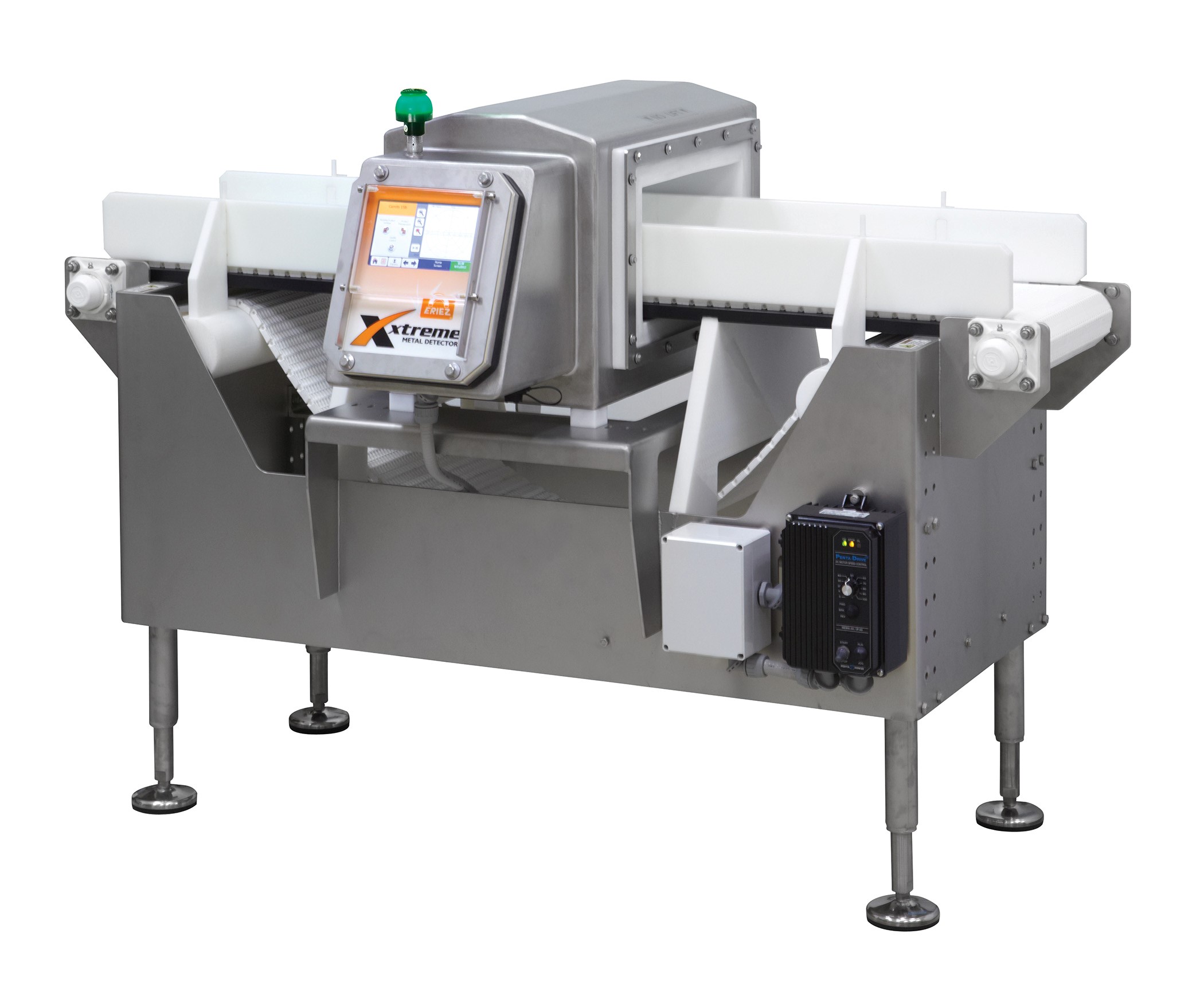

Optional Automatic Reject Devices

Eriez offers a variety of automatic reject options on the Xtreme Metal Detector 150, 300 and 450mm belt width Conveyor Systems including:

  • Push Arm or Air Blast Reject (Air Blast is not an option on the 450mm)
  • Lockbox
  • Reject Confirmation
  • Stainless Steel Motor/Reducer
  • Improved guarding
  • Emergency Stop
  • Side Guides
  • Casters

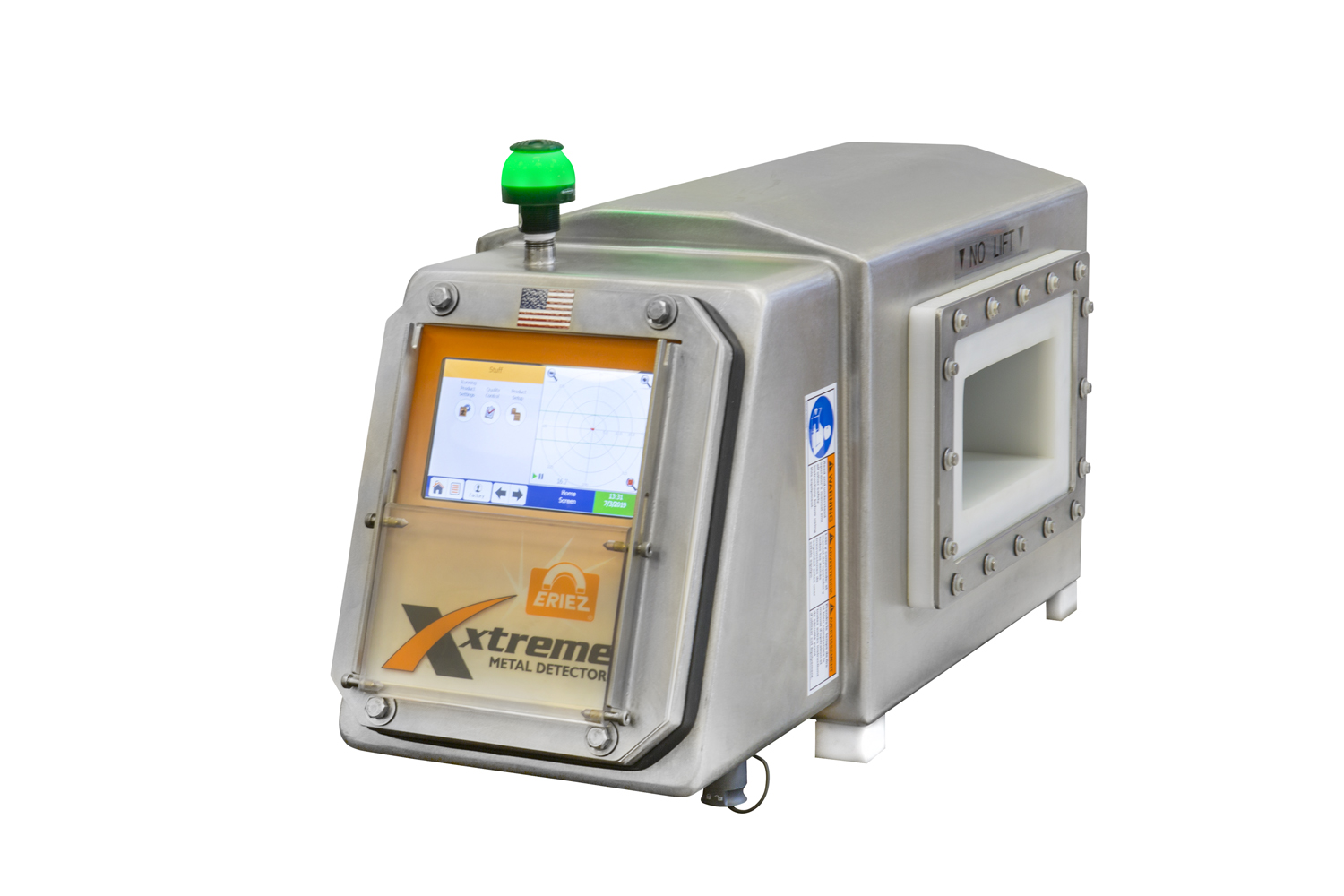

Xtreme Tunnel

Eriez’ Xtreme Tunnel Metal Detectors are custom manufactured to suit any in-line processing application where space is limited. Combine the Xtreme’s benchmark-setting sensitivities with its feature packed controls in a high-pressure wash down aperture head... all at the price of a mid-range detector.

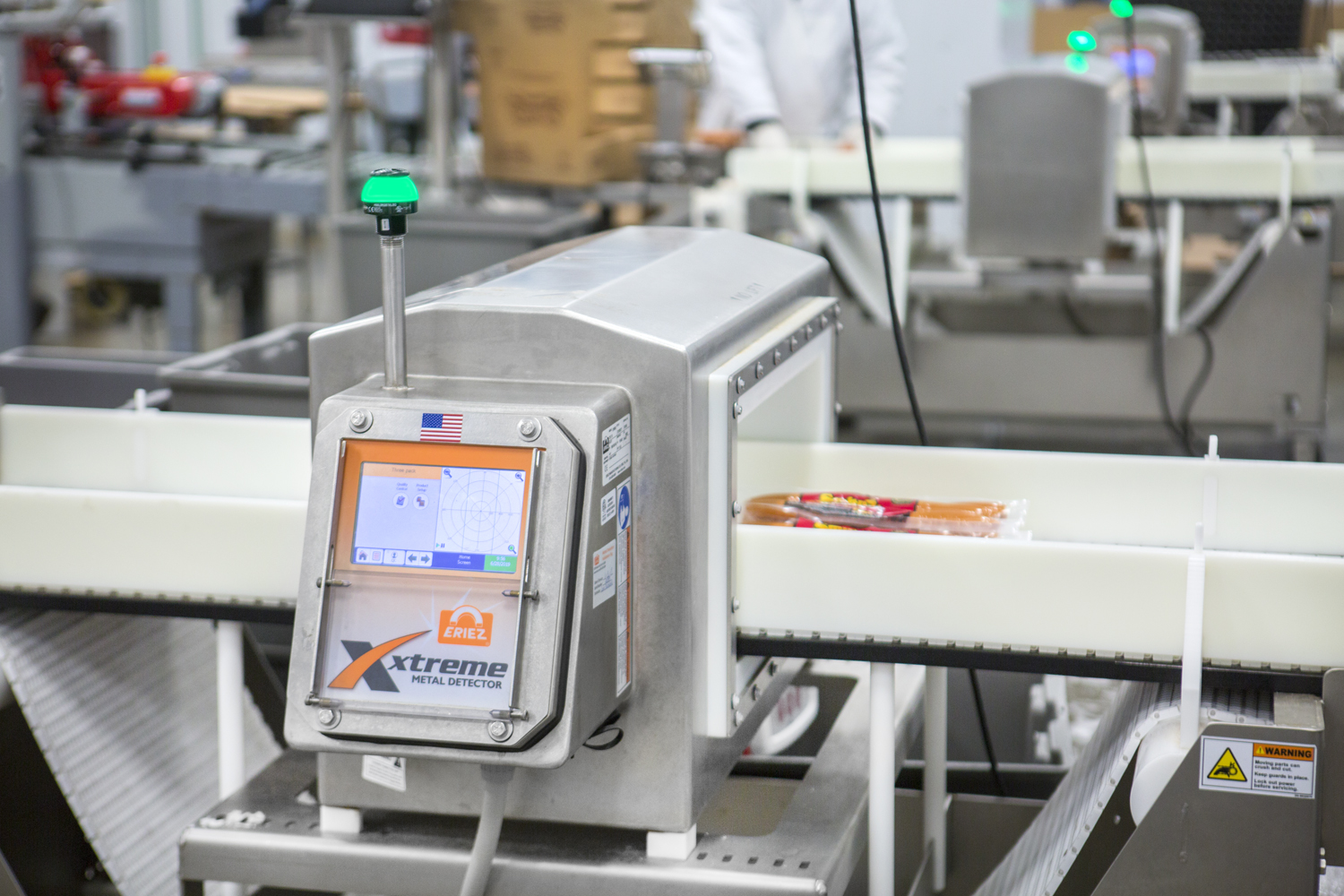

Xtreme Tunnel Detector with Conveyor

Tunnel Detector with Conveyor integrates the high-pressure wash-down Xtreme aperture tunnel with a durable conveyor. These systems can be ordered in a wide range of sizes with a myriad of optional equipment and are available in standard designs from our Quick Ship Program. Some of the main features include:

  • Continuously welded 304 stainless steel construction
  • Single point of power in 110/220 VAC
  • Food-grade belts
  • Tool-less disassembly available on standard design

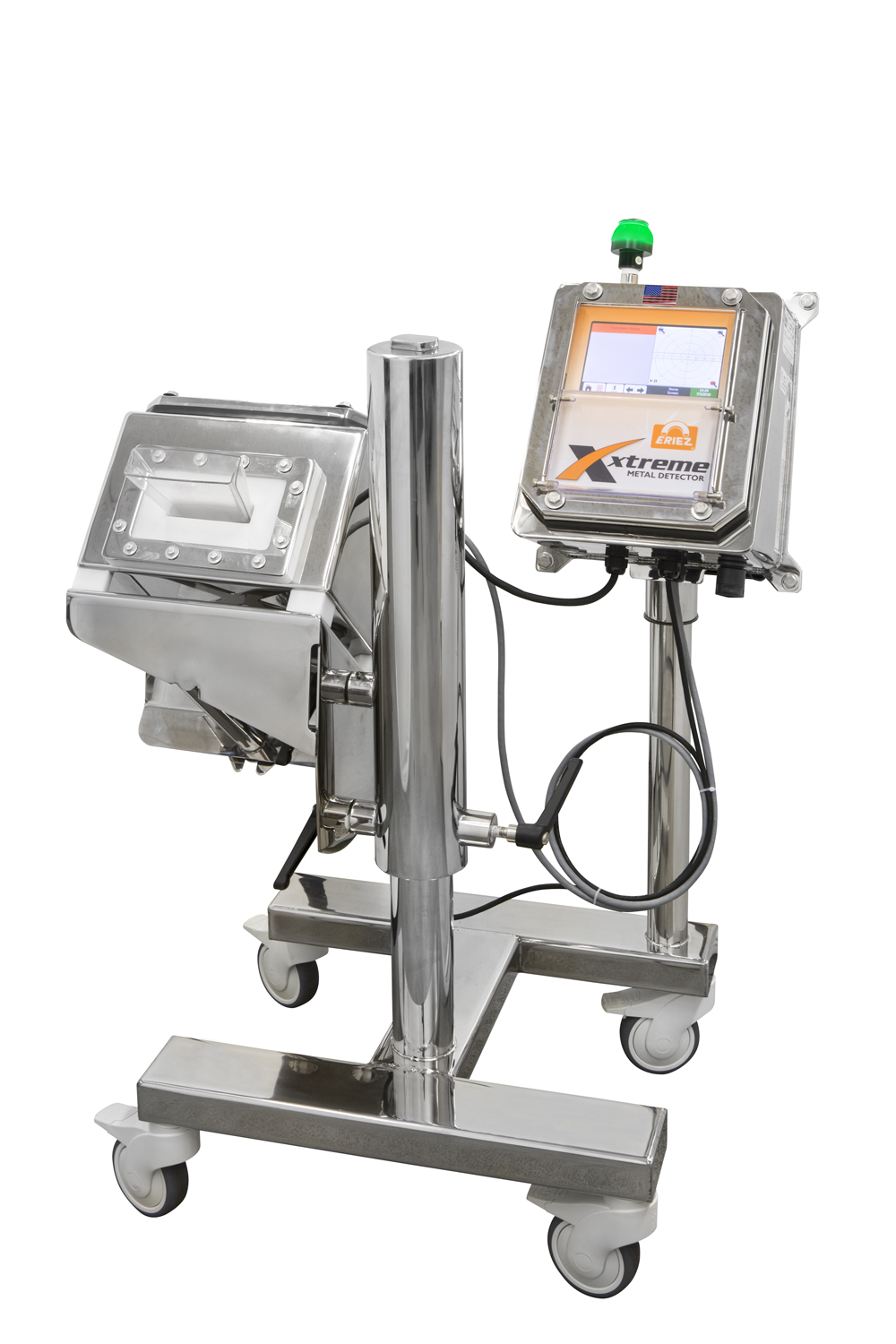

Xtreme Pharmaceutical

The Xtreme pharmaceutical is designed to inspect tablets and capsules that are gravity fed from the tablet press. This highly sensitive compact designed metal detector system meets stringent FDA standards and accommodates space - restricted areas within tablet and encapsulation rooms. Eriez' pharmaceutical unit has been engineered with an adjustable sensing head and has one of the largest and easiest to clean product chutes in the industry to optimize efficiency. The adjustable support stand comes with casters and is manufactured from 304 stainless steel.

  • 3.8cm H x 11.4cm W or 2.2cm H x 10cm W aperture
  • Includes free IQ, OQ and PQ Validation Protocols
  • Polished 304 stainless steel sensing head and frame
  • Tool-less disassembly for all product contact components for easy cleaning

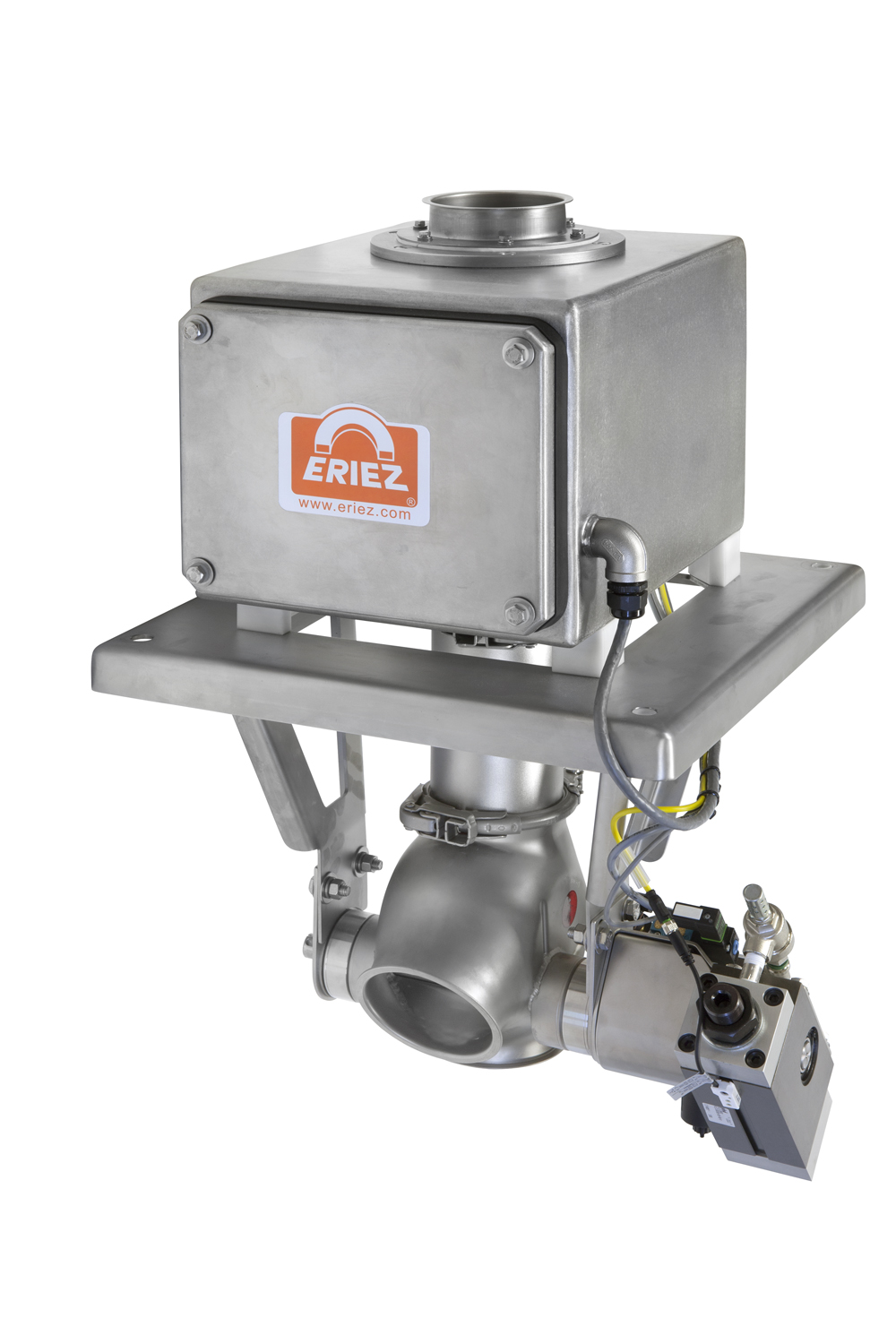

Xtreme Vertical, Form, Fill & Seal (VFS)

The Xtreme Vertical Form, Fill & Seal (VFS) units are designed to mount into space-restricted areas below Vertical Form and Fill machines. With its innovative design, the VFS Metal Detector connects to a customer's existing stainless steel hopper and forming tube with simple Jacobs connectors.

This compact unit requires no metal-free area above or below the sensing head. Its control circuitry allows for instantaneous electronic recovery from phase adjustments, as well as field switchable narrow zone/wide zone detection capabilities. The Eriez VFS Metal Detector is suitable for washdown, and features food grade pipe and stainless steel construction. The VFS is excellent for detection & removal of ferrous, non-ferrous & stainless metal contaminants in products prior to final packaging.

Eriez' Xtreme VFS Metal Detectors meet stringent standards for food processing environments and offer the superior sensitivity customers expect from Eriez - these units can detect millimeter-sized metal spheres.

All VFS Metal Detectors offer the same full color, intuitive icon-driven controls as Eriez' other Xtreme Metal Detector systems. Available in 7.5, 10, 15, 20 and 25.5 centimeter aperture sizes to meet practically any application need.

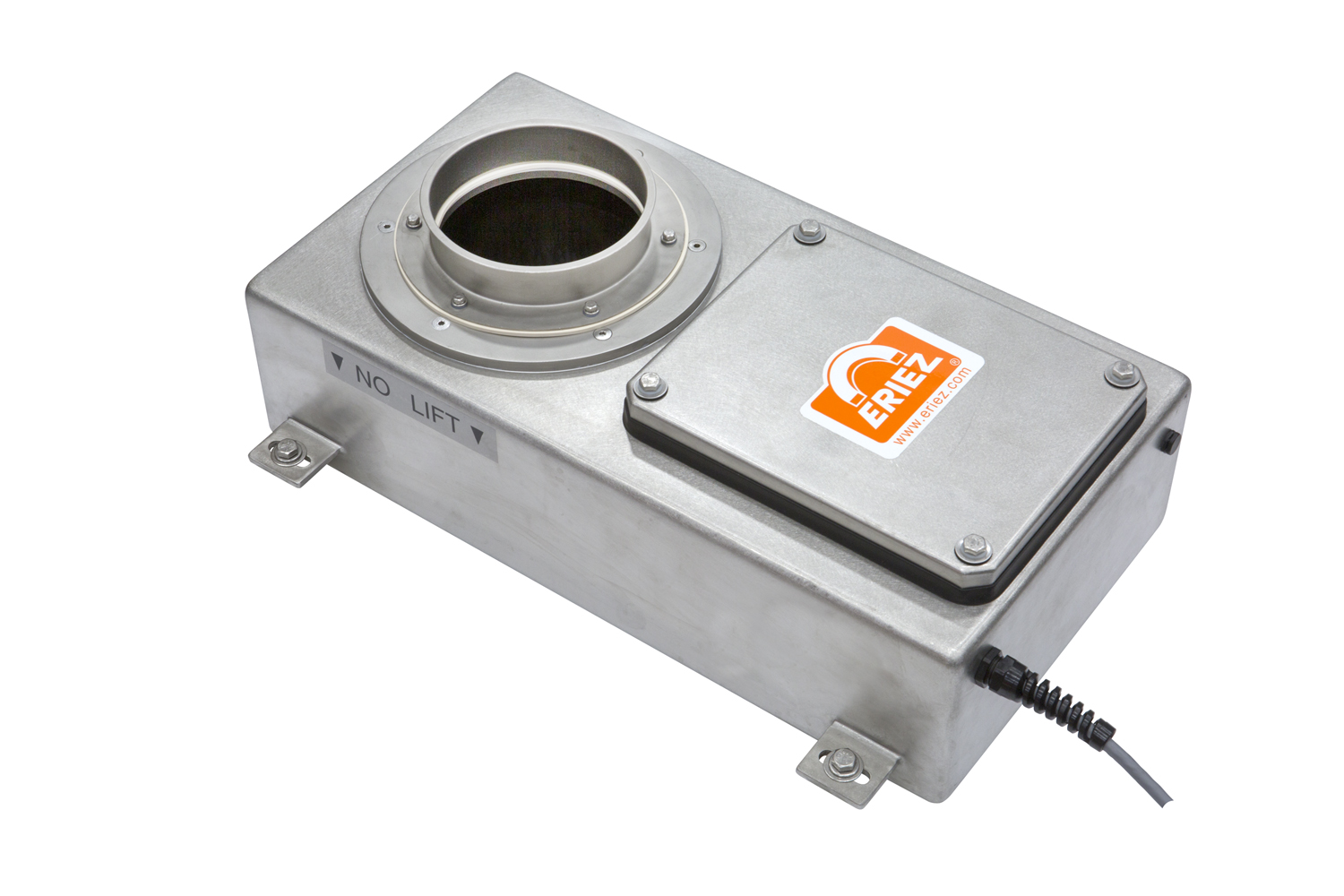

Xtreme Vertical Low Profile Systems

Eriez’ Xtreme Vertical Drop detectors are engineered for use in gravity free-fall applications. They are constructed of 304 stainless steel and include an Xtreme detector with remotely housed electronics, support plate and diverter valve.

  • Stainless steel construction
  • Low-profile design

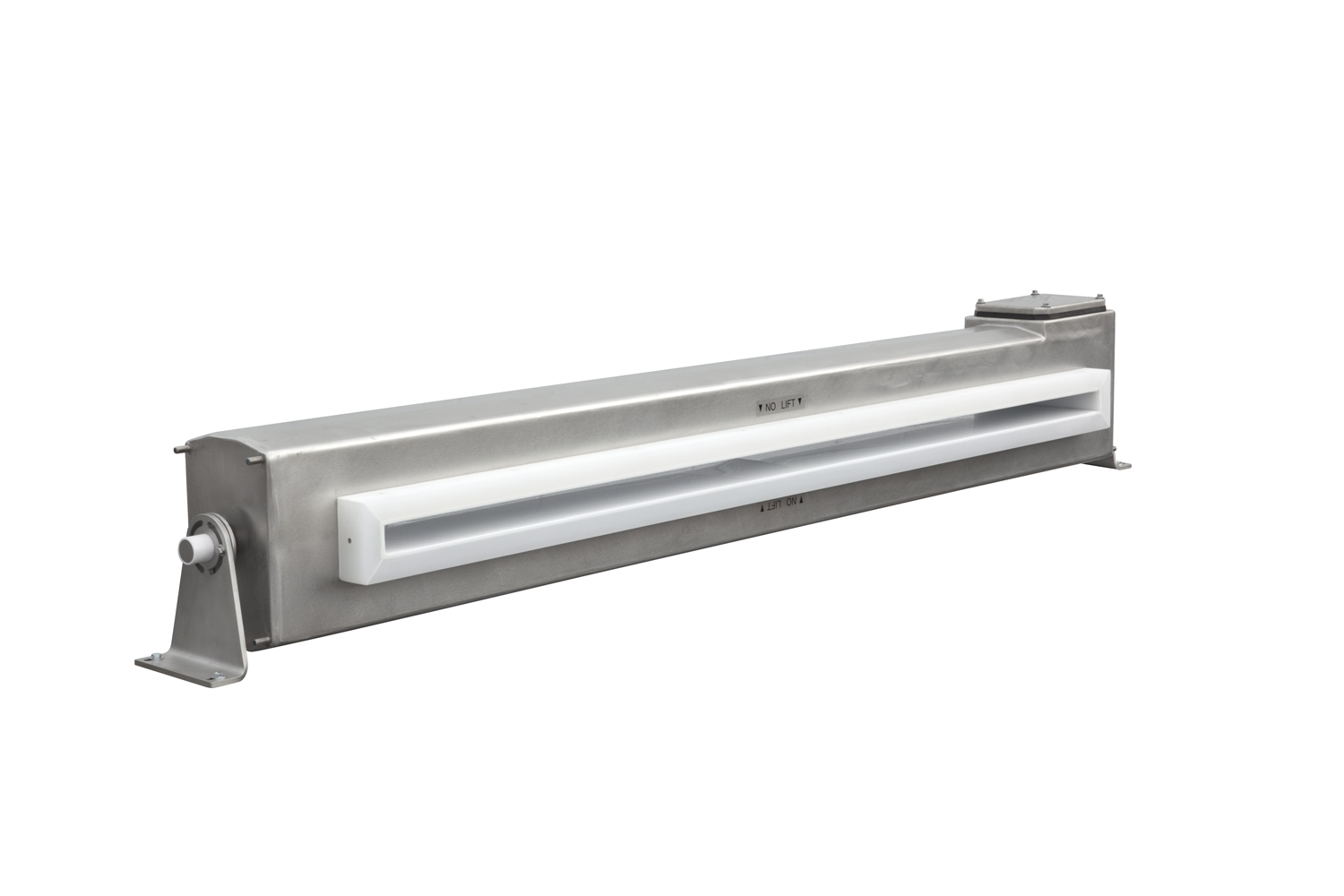

Xtreme Webline

Eriez’ Xtreme Webline metal detectors are engineered for use on web or sheet applications. This unit is particularly effective for detecting metallic contaminants in wide, thin products, such as plastics, rubber, wood, woven materials and particle board. The narrow profile and micro metal-free area of the unit permit it to be installed in areas with limited space and with little isolation of any surrounding equipment.

  • Stainless steel construction
  • Narrow profile design
  • Remote electronics

Eriez Xtreme Metal Detectors Features

Eriez Xtreme Conveyor 35 Second Breakdown

Eriez Xtreme Metal Detector Auto Setup Feature

Eriez Xtreme Metal Detector Interface and Product Effect


Learn how Eriez® Metal Detectors and Magnetic Separators helped Lakeshore Technologies grow as a business leader in Metal Contamination Removal.

Document Download:  Processing Industry Case Study - Lakeshore Technologies


Document Download: Xtreme Metal Detectors Brochure
